Maglitek is pleased to offer high-quality magnesium die casting services to meet your manufacturing needs. As experts in die casting with over 20 years of experience, we utilize state-of-the-art equipment and stringent quality control procedures specifically for magnesium alloys.
Magnesium is an exceptional material for die casting due to its lightweight properties, corrosion resistance, and high strength-to-weight ratio. Our capabilities make it possible to produce thin-wall castings to tight tolerances and smooth finishes, ideal for applications where weight reduction or corrosion resistance is critical.
At Maglitek, we cast a variety of magnesium alloys including AZ91D, AM60B, AM50A and ZE41A, etc. Our skilled metallurgists closely monitor each melt to ensure chemical composition is within specifications for optimum mechanical performance, strictly control the amount of harmful impurities. We can accommodate small to high volume production runs while maintaining quick turnarounds.
Injection speed is another crucial parameter in the magnesium die casting process. Controlling the injection speed directly affects the filling and solidification process of the magnesium liquid. If the injection speed is too high, bubbles and metal splashing will occur during filling, affecting the quality and surface finish of the casting; conversely, if the injection speed is too low, the magnesium liquid may fail to fill the mold cavity completely or cold shuts may occur. In actual production, our experienced die casting engineers will determine the appropriate injection speed based on the specific shape and size of the parts and the fluidity of the magnesium alloy liquid.

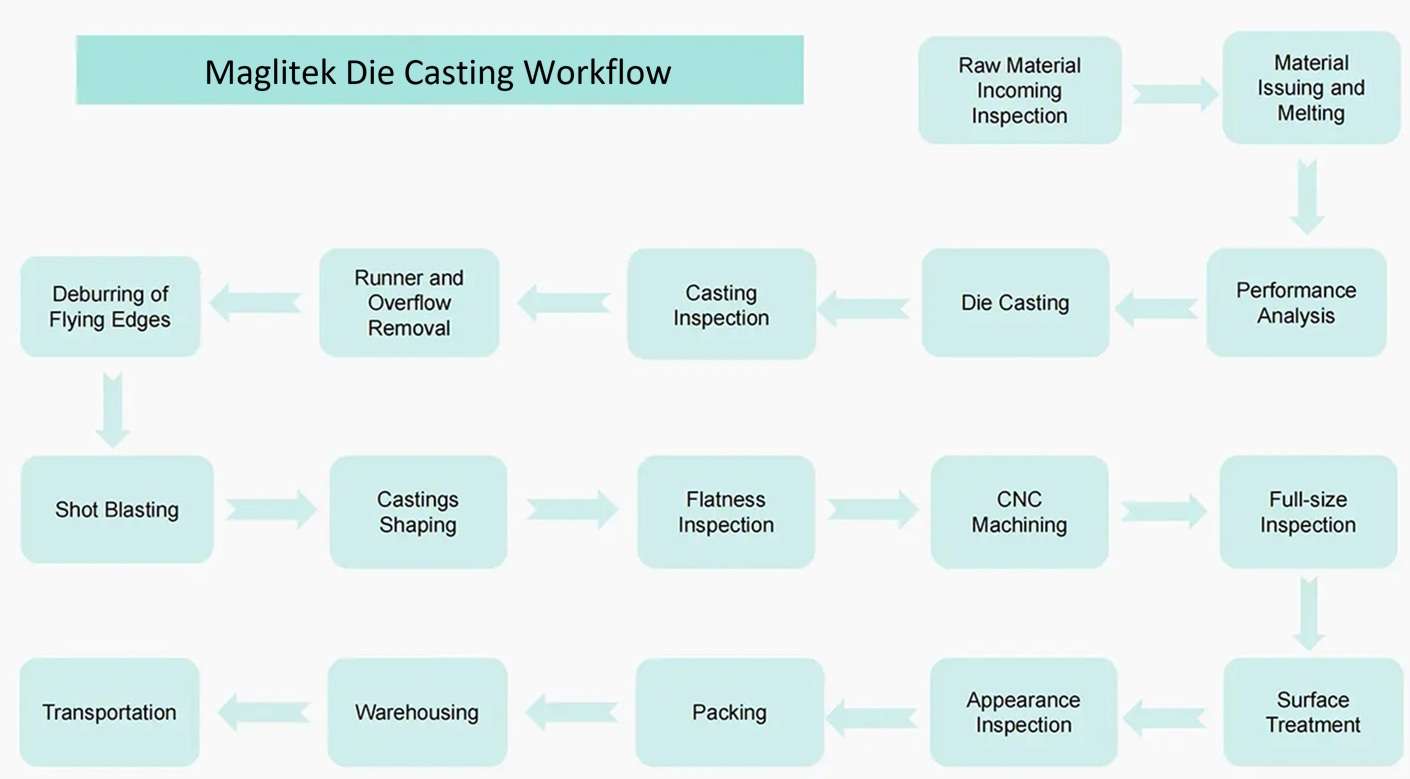

Every step of the process from tooling design to final surface treatments are done in-house at our ISO-certified facility. We utilize state-of-the-art die casting machines and perform first article inspections as well as dimensional reports per your requirements. Please contact us to learn more about our magnesium die casting expertise and how we can deliver high-quality components to meet your exact needs.
| Model | Plunger Diameter(mm) | Casting Pressure(Mpa) | Project Area(cm²) | Shot Weight(kg) | Remarks |
| YIZUMI DM300HII | Φ60 | 116 | 255 | 1.4 | Max Injection Speed 10m/s, Fully Automated Die Casting |
| YIZUMI DM300HII | Φ60 | 116 | 255 | 1.4 | Max Injection Speed 10m/s, Fully Automated Die Casting, Center Injection |
| YIZUMI DM650HII | Φ80 | 119 | 544 | 4.1 | Max Injection Speed 10m/s, Fully Automated Die Casting |
| YIZUMI DM800HII | Φ90 | 112 | 727 | 5.9 | Max Injection Speed 10m/s, Fully Automated Die Casting |

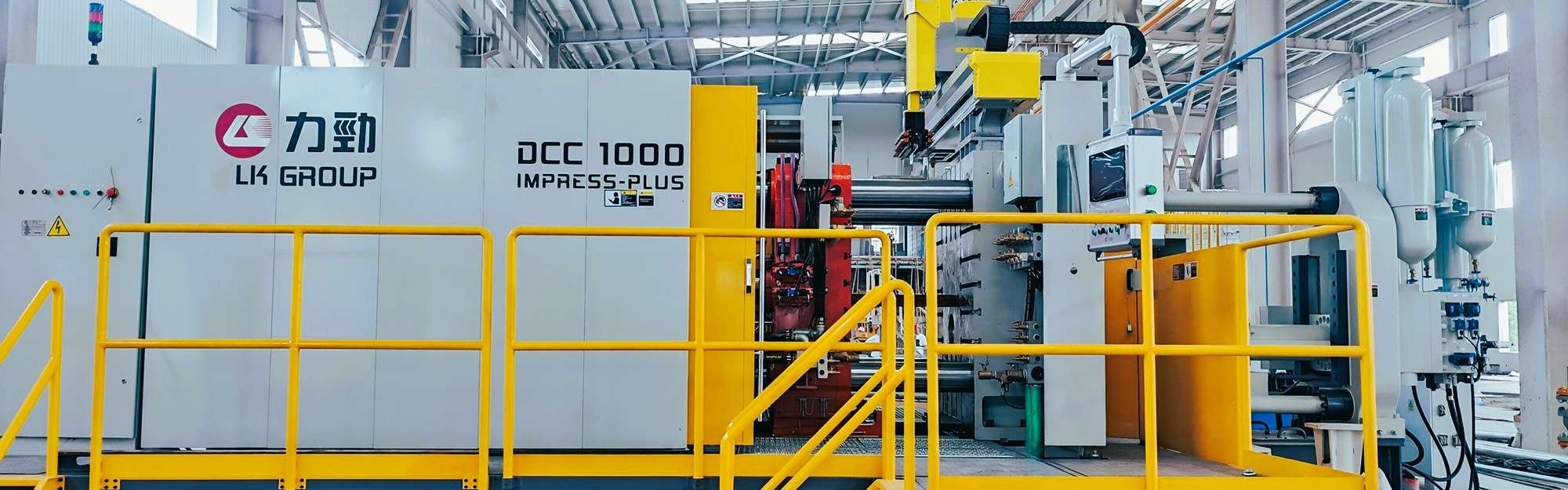

| LK DCC1000 | Φ100 | 113 | 910 | 8.8 | Max Injection Speed 10m/s, Fully Automated Die Casting, Set Up at 2025 |
*These Machines for Magnesium Die Casting*
Maglitek provides Aluminium Die Casting Services
| Model | Plunger Diameter(mm) | Casting Pressure(Mpa) | Project Area(cm²) | Shot Weight(kg) | Remarks |
| LK DCC280 | Φ50 | 162 | 170 | 1.5 | Max Injection Speed 8m/s, Fully Automated Die Casting |
| LK DCC400 | Φ60 | 144.4 | 275 | 2.7 | Max Injection Speed 8m/s, Fully Automated Die Casting |
| LK DCC500 | Φ70 | 122 | 405 | 4.3 | Max Injection Speed 8m/s, Fully Automated Die Casting |
| LK DCC800 | Φ80 | 132.8 | 600 | 7.2 | Max Injection Speed 8m/s, Fully Automated Die Casting |
*These Machines for Aluminium Die Casting*
